Golang 中的 OpenTelemetry 快速入门

December 1, 2024 9 minute read

本文将带您快速上手在 Golang 中使用 OpenTelemetry（OTel）。我们将从一个简单的 Golang 应用程序出发，学习如何采集并在控制台输出 trace、log 和 metrics 数据。接着，将介绍如何将追踪信息上报至 OTel Collector、Jaeger 和 Prometheus，并演示如何通过这些工具查看和分析观测数据。

创建并启动需要添加观测的服务

以下示例使用基本的 net/http 应用程序。

创建并启动 HTTP 服务器

在同一文件夹中，创建一个名为 main.go 的文件并将以下代码添加到该文件中：

package main

import (
	"log"
	"net/http"
)

func main() {
	http.HandleFunc("/rolldice", rolldice)

	log.Fatal(http.ListenAndServe(":8080", nil))
}

创建另一个名为 rolldice.go 的文件，并将以下代码添加到该文件中：

package main

import (
	"io"
	"log"
	"math/rand"
	"net/http"
	"strconv"
)

func rolldice(w http.ResponseWriter, r *http.Request) {
	roll := 1 + rand.Intn(6)

	resp := strconv.Itoa(roll) + "\n"
	if _, err := io.WriteString(w, resp); err != nil {
		log.Printf("Write failed: %v\n", err)
	}
}

使用以下命令构建并运行应用程序：

go run .

在 Web 浏览器中打开 http://localhost:10081/rolldice 以确保其正常工作。

增加 OpenTelemetry 注入

现在我们将展示如何将OpenTelemetry注入添加到示例应用程序中。如果您正在使用自己的应用程序，可以跟随操作，只需注意您的代码可能会略有不同。

添加依赖项

go get "go.opentelemetry.io/otel" \
"go.opentelemetry.io/otel/exporters/stdout/stdoutmetric" \
"go.opentelemetry.io/otel/exporters/stdout/stdouttrace" \
"go.opentelemetry.io/otel/exporters/stdout/stdoutlog" \
"go.opentelemetry.io/otel/sdk/log" \
"go.opentelemetry.io/otel/log/global" \
"go.opentelemetry.io/otel/propagation" \
"go.opentelemetry.io/otel/sdk/metric" \
"go.opentelemetry.io/otel/sdk/resource" \
"go.opentelemetry.io/otel/sdk/trace" \
"go.opentelemetry.io/contrib/instrumentation/net/http/otelhttp"\
"go.opentelemetry.io/contrib/bridges/otelslog"

这将安装 OpenTelemetry SDK 组件和针对 net/http 的自动监测功能。如果你需要对其他用于网络请求的库进行监测，你可能需要安装相应的库监测工具。更多关于库的信息，请参见相关文档。

初始化 OpenTelemetry SDK

首先，我们将初始化OpenTelemetry SDK。这对于任何导出遥测数据的应用程序都是必需的。创建一个名为otel.go的文件，并在里面添加 OpenTelemetry SDK 的引导代码：

package main

import (
	"context"
	"errors"
	"time"

	"go.opentelemetry.io/otel"
	"go.opentelemetry.io/otel/exporters/stdout/stdoutlog"
	"go.opentelemetry.io/otel/exporters/stdout/stdoutmetric"
	"go.opentelemetry.io/otel/exporters/stdout/stdouttrace"
	"go.opentelemetry.io/otel/log/global"
	"go.opentelemetry.io/otel/propagation"
	"go.opentelemetry.io/otel/sdk/log"
	"go.opentelemetry.io/otel/sdk/metric"
	"go.opentelemetry.io/otel/sdk/trace"
)

// setupOTelSDK bootstraps the OpenTelemetry pipeline.
// If it does not return an error, make sure to call shutdown for proper cleanup.
func setupOTelSDK(ctx context.Context) (shutdown func(context.Context) error, err error) {
	var shutdownFuncs []func(context.Context) error

	// shutdown calls cleanup functions registered via shutdownFuncs.
	// The errors from the calls are joined.
	// Each registered cleanup will be invoked once.
	shutdown = func(ctx context.Context) error {
		var err error
		for _, fn := range shutdownFuncs {
			err = errors.Join(err, fn(ctx))
		}
		shutdownFuncs = nil
		return err
	}

	// handleErr calls shutdown for cleanup and makes sure that all errors are returned.
	handleErr := func(inErr error) {
		err = errors.Join(inErr, shutdown(ctx))
	}

	// Set up propagator.
	prop := newPropagator()
	otel.SetTextMapPropagator(prop)

	// Set up trace provider.
	tracerProvider, err := newTraceProvider()
	if err != nil {
		handleErr(err)
		return
	}
	shutdownFuncs = append(shutdownFuncs, tracerProvider.Shutdown)
	otel.SetTracerProvider(tracerProvider)

	// Set up meter provider.
	meterProvider, err := newMeterProvider()
	if err != nil {
		handleErr(err)
		return
	}
	shutdownFuncs = append(shutdownFuncs, meterProvider.Shutdown)
	otel.SetMeterProvider(meterProvider)

	// Set up logger provider.
	loggerProvider, err := newLoggerProvider()
	if err != nil {
		handleErr(err)
		return
	}
	shutdownFuncs = append(shutdownFuncs, loggerProvider.Shutdown)
	global.SetLoggerProvider(loggerProvider)

	return
}

func newPropagator() propagation.TextMapPropagator {
	return propagation.NewCompositeTextMapPropagator(
		propagation.TraceContext{},
		propagation.Baggage{},
	)
}

func newTraceProvider() (*trace.TracerProvider, error) {
	traceExporter, err := stdouttrace.New(
		stdouttrace.WithPrettyPrint())
	if err != nil {
		return nil, err
	}

	traceProvider := trace.NewTracerProvider(
		trace.WithBatcher(traceExporter,
			// Default is 5s. Set to 1s for demonstrative purposes.
			trace.WithBatchTimeout(time.Second)),
	)
	return traceProvider, nil
}

func newMeterProvider() (*metric.MeterProvider, error) {
	metricExporter, err := stdoutmetric.New()
	if err != nil {
		return nil, err
	}

	meterProvider := metric.NewMeterProvider(
		metric.WithReader(metric.NewPeriodicReader(metricExporter,
			// Default is 1m. Set to 3s for demonstrative purposes.
			metric.WithInterval(3*time.Second))),
	)
	return meterProvider, nil
}

func newLoggerProvider() (*log.LoggerProvider, error) {
	logExporter, err := stdoutlog.New()
	if err != nil {
		return nil, err
	}

	loggerProvider := log.NewLoggerProvider(
		log.WithProcessor(log.NewBatchProcessor(logExporter)),
	)
	return loggerProvider, nil
}

如果你只使用追踪（Tracing）或度量（Metrics），你可以省略对应的TracerProvider或MeterProvider初始化代码。

对 HTTP Server 进行注入

现在我们已经初始化了 OpenTelemetry SDK，接下来可以对HTTP服务器进行监控（instrument）了。请修改 main.go 文件，以包含以下代码：这将设置 OpenTelemetry SDK，并使用 otelhttp 库来对 HTTP 服务器进行监控。

package main

import (
	"context"
	"errors"
	"log"
	"net"
	"net/http"
	"os"
	"os/signal"
	"time"

	"go.opentelemetry.io/contrib/instrumentation/net/http/otelhttp"
)

func main() {
	if err := run(); err != nil {
		log.Fatalln(err)
	}
}

func run() (err error) {
	// Handle SIGINT (CTRL+C) gracefully.
	ctx, stop := signal.NotifyContext(context.Background(), os.Interrupt)
	defer stop()

	// Set up OpenTelemetry.
	otelShutdown, err := setupOTelSDK(ctx)
	if err != nil {
		return
	}
	// Handle shutdown properly so nothing leaks.
	defer func() {
		err = errors.Join(err, otelShutdown(context.Background()))
	}()

	// Start HTTP server.
	srv := &http.Server{
		Addr:         ":8080",
		BaseContext:  func(_ net.Listener) context.Context { return ctx },
		ReadTimeout:  time.Second,
		WriteTimeout: 10 * time.Second,
		Handler:      newHTTPHandler(),
	}
	srvErr := make(chan error, 1)
	go func() {
		srvErr <- srv.ListenAndServe()
	}()

	// Wait for interruption.
	select {
	case err = <-srvErr:
		// Error when starting HTTP server.
		return
	case <-ctx.Done():
		// Wait for first CTRL+C.
		// Stop receiving signal notifications as soon as possible.
		stop()
	}

	// When Shutdown is called, ListenAndServe immediately returns ErrServerClosed.
	err = srv.Shutdown(context.Background())
	return
}

func newHTTPHandler() http.Handler {
	mux := http.NewServeMux()

	// handleFunc is a replacement for mux.HandleFunc
	// which enriches the handler's HTTP instrumentation with the pattern as the http.route.
	handleFunc := func(pattern string, handlerFunc func(http.ResponseWriter, *http.Request)) {
		// Configure the "http.route" for the HTTP instrumentation.
		handler := otelhttp.WithRouteTag(pattern, http.HandlerFunc(handlerFunc))
		mux.Handle(pattern, handler)
	}

	// Register handlers.
	handleFunc("/rolldice/", rolldice)
	handleFunc("/rolldice/{player}", rolldice)

	// Add HTTP instrumentation for the whole server.
	handler := otelhttp.NewHandler(mux, "/")
	return handler
}

增加第三方注入

注入库在系统的边缘处捕获遥测数据，例如入站和出站HTTP请求，但它们不会捕获应用程序内部的情况。为此，您需要编写一些自定义的手动注入代码。使用 OpenTelemetry API 修改 rolldice.go 以包含自定义注入：

package main

import (
	"fmt"
	"io"
	"log"
	"math/rand"
	"net/http"
	"strconv"

	"go.opentelemetry.io/contrib/bridges/otelslog"
	"go.opentelemetry.io/otel"
	"go.opentelemetry.io/otel/attribute"
	"go.opentelemetry.io/otel/metric"
)

const name = "go.opentelemetry.io/otel/example/dice"

var (
	tracer = otel.Tracer(name)
	meter  = otel.Meter(name)
	logger = otelslog.NewLogger(name)
	rollCnt metric.Int64Counter
)

func init() {
	var err error
	rollCnt, err = meter.Int64Counter("dice.rolls",
		metric.WithDescription("The number of rolls by roll value"),
		metric.WithUnit("{roll}"))
	if err != nil {
		panic(err)
	}
}

func rolldice(w http.ResponseWriter, r *http.Request) {
	ctx, span := tracer.Start(r.Context(), "roll")
	defer span.End()

	roll := 1 + rand.Intn(6)

	var msg string
	if player := r.PathValue("player"); player != "" {
		msg = fmt.Sprintf("%s is rolling the dice", player)
	} else {
		msg = "Anonymous player is rolling the dice"
	}
	logger.InfoContext(ctx, msg, "result", roll)

	rollValueAttr := attribute.Int("roll.value", roll)
	span.SetAttributes(rollValueAttr)
	rollCnt.Add(ctx, 1, metric.WithAttributes(rollValueAttr))

	resp := strconv.Itoa(roll) + "\n"
	if _, err := io.WriteString(w, resp); err != nil {
		log.Printf("Write failed: %v\n", err)
	}
}

请注意，如果您仅使用跟踪或度量，可以省略用于注入另一种遥测类型对应的代码。运行应用通过以下命令编译并运行这个应用：

go mod tidy
export OTEL_RESOURCE_ATTRIBUTES="service.name=dice,service.version=0.1.0"
go run .

在您的网络浏览器中打开 http://localhost:10081/rolldice/Alice。当您向服务器发送请求时，您将在控制台看到两个跨度（span）记录。由监控库生成的跨度跟踪了对/rolldice/{player} 路由的请求生命周期。另一个称为“roll”的跨度是手动创建的，并且它是前一个提到的跨度的子级。

查看 demo 输出

{
  "Name": "roll",
  "SpanContext": {
    "TraceID": "34a760f24420c2d0c1a7ad7d6a8ef814",
    "SpanID": "5a09abab43d9faf6",
    "TraceFlags": "01",
    "TraceState": "",
    "Remote": false
  },
  "Parent": {
    "TraceID": "34a760f24420c2d0c1a7ad7d6a8ef814",
    "SpanID": "9c39e2a2f661e792",
    "TraceFlags": "01",
    "TraceState": "",
    "Remote": false
  },
  "SpanKind": 1,
  "StartTime": "2024-11-29T11:50:39.809163+08:00",
  "EndTime": "2024-11-29T11:50:39.809376042+08:00",
  "Attributes": [
    {
      "Key": "roll.value",
      "Value": {
        "Type": "INT64",
        "Value": 1
      }
    }
  ],
  "Events": null,
  "Links": null,
  "Status": {
    "Code": "Unset",
    "Description": ""
  },
  "DroppedAttributes": 0,
  "DroppedEvents": 0,
  "DroppedLinks": 0,
  "ChildSpanCount": 0,
  "Resource": [
    {
      "Key": "service.name",
      "Value": {
        "Type": "STRING",
        "Value": "dice"
      }
    },
    {
      "Key": "service.version",
      "Value": {
        "Type": "STRING",
        "Value": "0.1.0"
      }
    },
    {
      "Key": "telemetry.sdk.language",
      "Value": {
        "Type": "STRING",
        "Value": "go"
      }
    },
    {
      "Key": "telemetry.sdk.name",
      "Value": {
        "Type": "STRING",
        "Value": "opentelemetry"
      }
    },
    {
      "Key": "telemetry.sdk.version",
      "Value": {
        "Type": "STRING",
        "Value": "1.32.0"
      }
    }
  ],
  "InstrumentationScope": {
    "Name": "go.opentelemetry.io/otel/example/dice",
    "Version": "",
    "SchemaURL": "",
    "Attributes": null
  },
  "InstrumentationLibrary": {
    "Name": "go.opentelemetry.io/otel/example/dice",
    "Version": "",
    "SchemaURL": "",
    "Attributes": null
  }
}
{
  "Name": "/",
  "SpanContext": {
    "TraceID": "34a760f24420c2d0c1a7ad7d6a8ef814",
    "SpanID": "9c39e2a2f661e792",
    "TraceFlags": "01",
    "TraceState": "",
    "Remote": false
  },
  "Parent": {
    "TraceID": "00000000000000000000000000000000",
    "SpanID": "0000000000000000",
    "TraceFlags": "00",
    "TraceState": "",
    "Remote": false
  },
  "SpanKind": 2,
  "StartTime": "2024-11-29T11:50:39.808892+08:00",
  "EndTime": "2024-11-29T11:50:39.809416+08:00",
  "Attributes": [
    {
      "Key": "http.method",
      "Value": {
        "Type": "STRING",
        "Value": "GET"
      }
    },
    {
      "Key": "http.scheme",
      "Value": {
        "Type": "STRING",
        "Value": "http"
      }
    },
    {
      "Key": "net.host.name",
      "Value": {
        "Type": "STRING",
        "Value": "127.0.0.1"
      }
    },
    {
      "Key": "net.host.port",
      "Value": {
        "Type": "INT64",
        "Value": 10081
      }
    },
    {
      "Key": "net.sock.peer.addr",
      "Value": {
        "Type": "STRING",
        "Value": "127.0.0.1"
      }
    },
    {
      "Key": "net.sock.peer.port",
      "Value": {
        "Type": "INT64",
        "Value": 50089
      }
    },
    {
      "Key": "user_agent.original",
      "Value": {
        "Type": "STRING",
        "Value": "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/129.0.0.0 Safari/537.36"
      }
    },
    {
      "Key": "http.target",
      "Value": {
        "Type": "STRING",
        "Value": "/trace/Alice"
      }
    },
    {
      "Key": "net.protocol.version",
      "Value": {
        "Type": "STRING",
        "Value": "1.1"
      }
    },
    {
      "Key": "http.route",
      "Value": {
        "Type": "STRING",
        "Value": "/trace/{player}"
      }
    },
    {
      "Key": "http.wrote_bytes",
      "Value": {
        "Type": "INT64",
        "Value": 2
      }
    },
    {
      "Key": "http.status_code",
      "Value": {
        "Type": "INT64",
        "Value": 200
      }
    }
  ],
  "Events": null,
  "Links": null,
  "Status": {
    "Code": "Unset",
    "Description": ""
  },
  "DroppedAttributes": 0,
  "DroppedEvents": 0,
  "DroppedLinks": 0,
  "ChildSpanCount": 1,
  "Resource": [
    {
      "Key": "service.name",
      "Value": {
        "Type": "STRING",
        "Value": "dice"
      }
    },
    {
      "Key": "service.version",
      "Value": {
        "Type": "STRING",
        "Value": "0.1.0"
      }
    },
    {
      "Key": "telemetry.sdk.language",
      "Value": {
        "Type": "STRING",
        "Value": "go"
      }
    },
    {
      "Key": "telemetry.sdk.name",
      "Value": {
        "Type": "STRING",
        "Value": "opentelemetry"
      }
    },
    {
      "Key": "telemetry.sdk.version",
      "Value": {
        "Type": "STRING",
        "Value": "1.32.0"
      }
    }
  ],
  "InstrumentationScope": {
    "Name": "go.opentelemetry.io/contrib/instrumentation/net/http/otelhttp",
    "Version": "0.49.0",
    "SchemaURL": "",
    "Attributes": null
  },
  "InstrumentationLibrary": {
    "Name": "go.opentelemetry.io/contrib/instrumentation/net/http/otelhttp",
    "Version": "0.49.0",
    "SchemaURL": "",
    "Attributes": null
  }
}

将追踪数据发往 OTel Collector

OTel Collector 是大多数生产部署中一个关键的组件。以下是一些使用 OTel Collector 的优势：

一个由多个服务共享的单一可观测数据收集器，以减少切换 Exporter 的开销
在发往服务端之前可以集中处理 trace，避免重复处理操作
可以聚合多个服务、多个主机上的 Trace

除非您只有一个服务或正在进行测试，否则在生产部署中，推荐您使用收集器

上报至本地 OTel Collector

func newPrometheusMeterProvider() (*metric.MeterProvider, error) {
    metricExporter, err := otlpmetricgrpc.New(
       context.Background(),
       otlpmetricgrpc.WithInsecure(),
       otlpmetricgrpc.WithEndpoint("0.0.0.0:4317"))
    if err != nil {
       return nil, err
    }

    return metric.NewMeterProvider(
       metric.WithReader(
          metric.NewPeriodicReader(
             metricExporter,
             // Default is 1m. Set to 3s for demonstrative purposes.
             metric.WithInterval(3*time.Second))),
    ), nil
}

配置并启动一个本地的 OTel Collector

首先，将以下 OTel Collector 配置代码保存到 /tmp/otel-collector-config.yaml 文件中：

receivers:
  otlp:
    protocols:
      grpc:
        endpoint: 0.0.0.0:4319
      http:
        endpoint: 0.0.0.0:4320
exporters:
  NOTE: Prior to v0.86.0 use logging instead of debug.
  debug:
    verbosity: detailed
processors:
  batch:
service:
  pipelines:
    traces:
      receivers: [otlp]
      exporters: [debug]
      processors: [batch]
    metrics:
      receivers: [otlp]
      exporters: [debug]
      processors: [batch]
    logs:
      receivers: [otlp]
      exporters: [debug]
      processors: [batch]

service 配置了服务相关的参数，这里定义了追踪数据的 pipeline。该 pipeline 使用了前面定义的接收器、处理器和导出器，将追踪数据从接收器接收、经过处理器处理，最终导出。

以上配置将使用 otlp 协议来接收用户的输入，即 OTel Go SDK 与 OTel Collector 之间使用 otlp 协议进行通信。并将数据最终打印在 OTel Collector 控制台。您也可以将数据上报至于 Prometheus 或者 Jaeger 中，详细的配置信息见：OTel Collector配置

然后运行 Docker 命令，根据此配置获取并运行 OTel Collector：

Terminal window

docker run -p 4320:4320 \
  -v /tmp/otel-collector-config.yaml:/etc/otel-collector-config.yaml \
  otel/opentelemetry-collector:latest \
  --config=/etc/otel-collector-config.yaml

您现在将在本地运行一个 OTel Collector 实例，该实例监听 4320 端口。

运行 Demo

对应 Trace 信息会显示到启动的 OTel Collector 实例终端。

Terminal window

export OTEL_EXPORTER_OTLP_ENDPOINT="0.0.0.0:4320"

https://github.com/open-telemetry/opentelemetry-collector-contrib/tree/main/examples/demo

将链路追踪数据直接发送至 Jaeger

如果觉着控制台看的 span 不够直观，可以选择将链路追踪的数据发送至 Jaeger，通过 Jaeger UI 查看。

上报至 Jaeger

安装 otlptracehttp 依赖包。

go get go.opentelemetry.io/otel/exporters/otlp/otlptrace/otlptracehttp

修改 otel.go 代码，新增以下函数（这里使用 HTTP 协议的4318 端口上报链路追踪数据）。

func newJaegerTraceProvider(ctx context.Context) (*trace.TracerProvider, error) {
        // 创建一个使用 HTTP 协议连接本机Jaeger的 Exporter
        traceExporter, err := otlptracehttp.New(ctx,
                otlptracehttp.WithEndpoint("127.0.0.1:4318"),
                otlptracehttp.WithInsecure())
        if err != nil {
                return nil, err
        }
        traceProvider := trace.NewTracerProvider(
                trace.WithBatcher(traceExporter,
                        // 默认为 5s。为便于演示，设置为 1s。
                        trace.WithBatchTimeout(time.Second)),
        )
        return traceProvider, nil
}

并且按如下代码修改设置 trace provider 部分。

// 设置 trace provider.
//tracerProvider, err := newTraceProvider()
tracerProvider, err := newJaegerTraceProvider(ctx)
if err != nil {
        handleErr(err)
        return}
shutdownFuncs = append(shutdownFuncs, tracerProvider.Shutdown)
otel.SetTracerProvider(tracerProvider)

再次构建并启动程序。

  go run .

尝试访问一次 http://localhost:10081/rolldice/Alice，确保修改后的服务能够正常运行。

启动 Jaeger

Jaeger 官方提供的 all-in-one 是为快速本地测试而设计的可执行文件。它包括 Jaeger UI、jaeger-collector、jaeger-query 和 jaeger-agent，以及一个内存存储组件。

启动 all-in-one 的最简单方法是使用发布到 DockerHub 的预置镜像（只需一条命令行）。

通过 4317 端口接收 OTel Collector 发送的数据，这里使用 HTTP 协议的4318 端口上报链路追踪数据。

docker run -d --name jaeger \
  -e COLLECTOR_OTLP_ENABLED=true \
  -p 16686:16686 \
  -p 4317:4317 \
  -p 4318:4318 \
  jaegertracing/all-in-one:latest

下面这个是其它案例里面的操作：

docker run --rm --name jaeger \
  -e COLLECTOR_ZIPKIN_HOST_PORT=:9411 \
  -p 6831:6831/udp \
  -p 6832:6832/udp \
  -p 5778:5778 \
  -p 16686:16686 \
  -p 4317:4317 \
  -p 4318:4318 \
  -p 14250:14250 \
  -p 14268:14268 \
  -p 14269:14269 \
  -p 9411:9411 \
  jaegertracing/all-in-one:1.55

容器公开以下端口：

Port	Protocol	Component	Function
6831	UDP	agent	accept jaeger.thrift over Thrift-compact protocol (used by most SDKs)
6832	UDP	agent	accept jaeger.thrift over Thrift-binary protocol (used by Node.js SDK)
5775	UDP	agent	(deprecated) accept zipkin.thrift over compact Thrift protocol
5778	HTTP	agent	serve configs (sampling, etc.)
16686	HTTP	query	serve frontend
4317	HTTP	collector	accept OpenTelemetry Protocol (OTLP) over gRPC
4318	HTTP	collector	accept OpenTelemetry Protocol (OTLP) over HTTP
14268	HTTP	collector	accept jaeger.thrift directly from clients
14250	HTTP	collector	accept model.proto
9411	HTTP	collector	Zipkin compatible endpoint (optional)

查看数据

然后你可以使用浏览器打开 http://localhost:16686 访问 Jaeger UI。

使用 Jaeger UI

使用浏览器打开 http://127.0.0.1:16686 的Jaeger UI界面。在屏幕左侧的 service 下拉框中选中 dice后查找，即可看到上报的 trace 数据。

点击右侧的 trace 数据，即可查看详情。

图2 trace 数据图

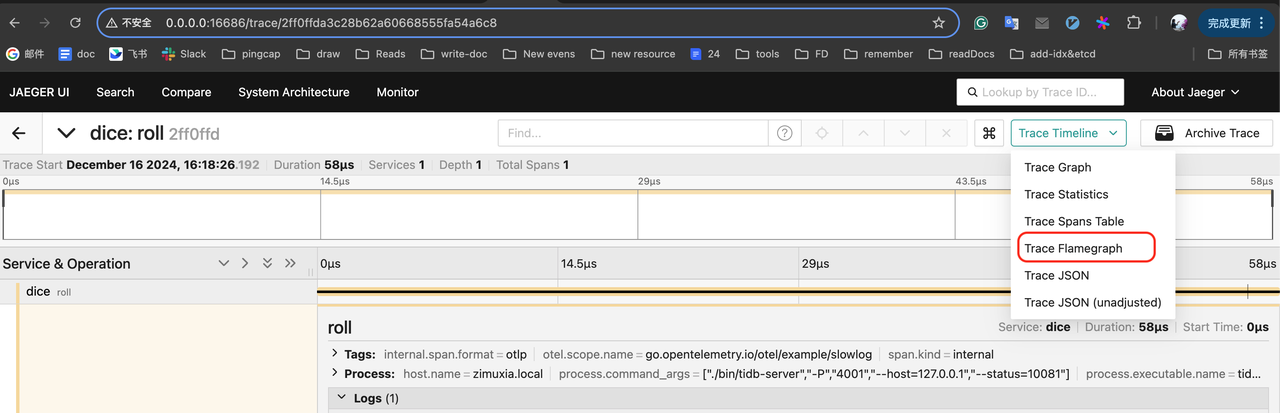

查看火焰图等格式

图3 火焰图

将追踪数据发送至 Prometheus（通过 OTel Collector）

上报本地的 OTel Collector

func newPrometheusMeterProvider() (*metric.MeterProvider, error) {
    metricExporter, err := otlpmetricgrpc.New(
       context.Background(),
       otlpmetricgrpc.WithInsecure(),
       otlpmetricgrpc.WithEndpoint("0.0.0.0:4317"))
    if err != nil {
       return nil, err
    }

    return metric.NewMeterProvider(
       metric.WithReader(
          metric.NewPeriodicReader(
             metricExporter,
             // Default is 1m. Set to 3s for demonstrative purposes.
             metric.WithInterval(3*time.Second))),
    ), nil
}

配置并启动一个本地的 OTel Collector

首先，将以下 OTel Collector 配置代码保存到 /tmp/otel-collector-config.yml 文件中：

receivers:
  otlp:
    protocols:
      grpc:
        endpoint: 0.0.0.0:4317
      http:
        endpoint: 0.0.0.0:4320
exporters:
  prometheus:
    endpoint: "0.0.0.0:8889"
    const_labels:
      label1: value1
  debug:
    verbosity: detailed
processors:
  batch:
service:
  pipelines:
    traces:
      receivers: [otlp]
      exporters: [debug]
      processors: [batch]
    metrics:
      receivers: [otlp]
      exporters: [debug, prometheus]
      processors: [batch]
    logs:
      receivers: [otlp]
      exporters: [debug]
      processors: [batch]

运行 OTel Collector

docker run -p 4320:4320 \
  -p 4317:4317 \      # OTLP gRPC receiver
  -p 8888:8888 \      # Prometheus metrics exposed by the collector
  -p 8889:8889 \      # Prometheus exporter metrics
  -v /tmp/otel-collector-config.yaml:/etc/otel-collector-config.yaml \
  otel/opentelemetry-collector:latest \
  --config=/etc/otel-collector-config.yaml

配置并启动 Prometheus

prometheus.yml 文件

  scrape_configs:
    - job_name: 'otel-collector'
      scrape_interval: 10s
      static_configs:
        - targets: ['otel-collector:8889']
        - targets: ['otel-collector:8888']

如果上面的 yml 文件配置了 targets.json 文件（以 TiDB 集群配置为例），则需要改 …/prometheus/targets.json

    ## Prometheus.yml
    scrape_configs:
      - job_name: 'cluster'
        file_sd_configs:
          - files:
              - targets.json

// prometheus/targets.json
    {
            "targets": [
                    "127.0.0.1:8889"
            ],
            "labels": {
                    "job": "otel-collector"
            }
    },
    {
            "targets": [
                    "127.0.0.1:8888"
            ],
            "labels": {
                    "job": "otel-collector"
            }
    },

启动 prometheus，以下是以 TiDB 集群启动 prometheus 为例

./prometheus --config.file=/Users/xia/.tiup/data/UVx5Syf/prometheus/prometheus.yml --web.external-url=http://127.0.0.1:9090 --web.listen-address=127.0.0.1:9090 --storage.tsdb.path=/Users/xia/.tiup/data/UVx5Syf/prometheus/data

Prometheus 显示

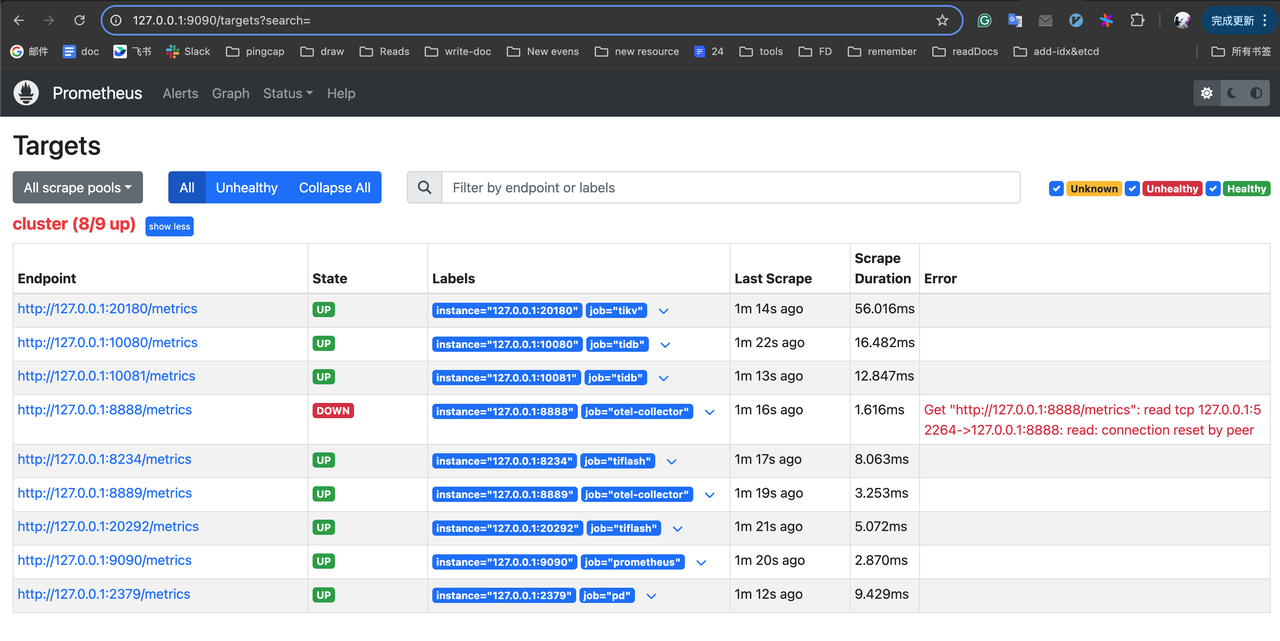

查看配置是否正确，http://127.0.0.1:9090/targets?search=

图4 Prometheus

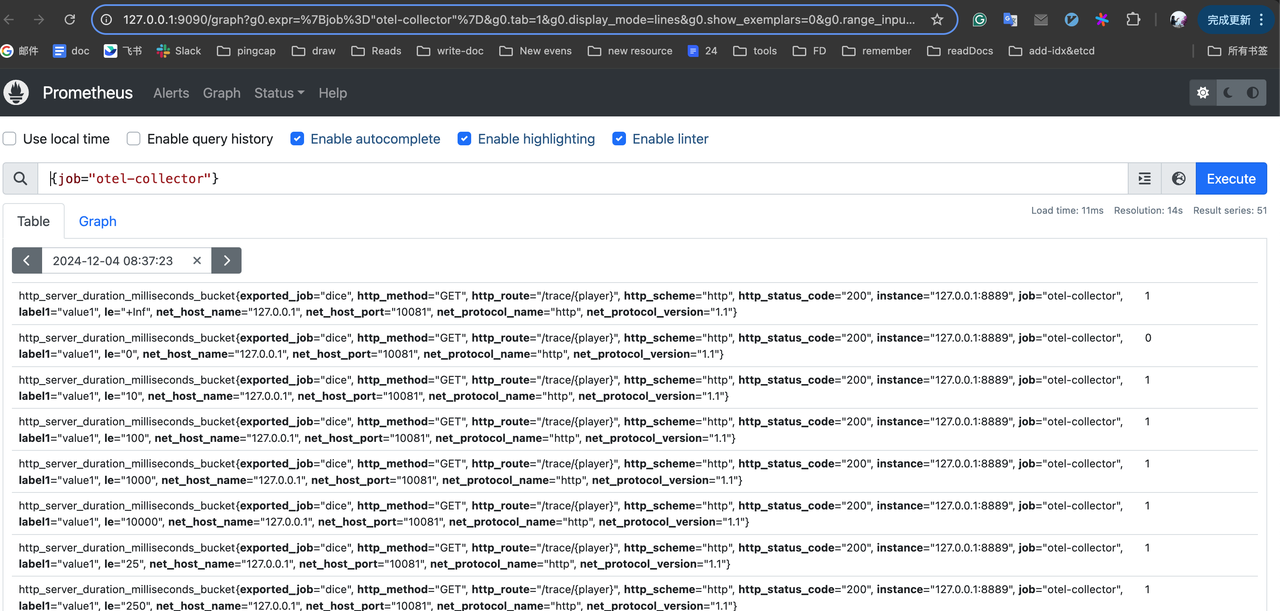

上面 Prometheus 配置 job name，{job=”otel-collector”} http://128.0.0.1:9090 job search

图5 Prometheus job

参考

Share on

Twitter Facebook LinkedIn

Golang 中的 OpenTelemetry 快速入门

创建并启动需要添加观测的服务

创建并启动 HTTP 服务器

增加 OpenTelemetry 注入

添加依赖项

初始化 OpenTelemetry SDK

对 HTTP Server 进行注入

增加第三方注入

将追踪数据发往 OTel Collector

上报至本地 OTel Collector

配置并启动一个本地的 OTel Collector

运行 Demo

将链路追踪数据直接发送至 Jaeger

上报至 Jaeger

启动 Jaeger

查看数据

使用 Jaeger UI

将追踪数据发送至 Prometheus（通过 OTel Collector）

上报本地的 OTel Collector

配置并启动一个本地的 OTel Collector

配置并启动 Prometheus

Prometheus 显示

参考

Share on

You May Also Enjoy

Index Architecture Proposal

Proposal to Pause User DDL During TiDB Upgrades

Proposal for Supporting Distributed DDL Reorg in TiDB

Proposal for Supporting Charset Framework in TiDB
